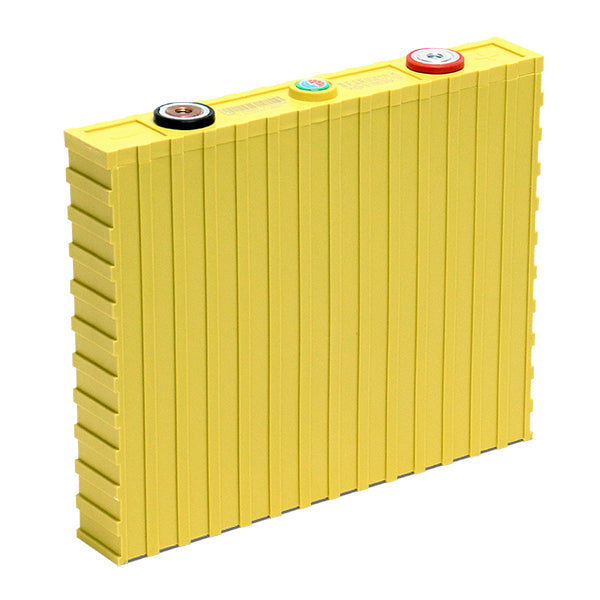

WINSTON TSWB-LYP300AHA LiFeYPO4, 3.3V, 300Ah
WINSTON TSWB-LYP300AHA LiFeYPO4, 3.3V, 300Ah
Couldn't load pickup availability
Original Thunder Sky Winston part number: WB-LYP300AHA, TSWB-LYP300AHA
Recommended initial and subsequent charging is to 3.65 V.
The minimum voltage is 2.5 V.
Maximum discharge current is 3C continuously.
Operating temperature -45°C up to 85°C (discharging)
Energy density is 96 Wh/kg
These battery cells are suitable for all traction applications including electric vehicles. Fully complies also for stationary applications - such as energy storage.
There is no Selfdischarging effect.
Can be recharged at any state of discharge - no memory effect
LiFePO4 is a very safe technology, not spontaneous combustion, does not react with moisture or with oxygen.
All cells are supplied new directly from the manufacturer.
Original Woodenbox contains 9 cells is 543*509*425mm large and weights 97kg
| Weight (kg) | 10 |
| Connector | M12 |
| Height (mm) | 306 |
| Width (mm) | 362 |
| Depth (mm) | 56 |
| Nominal Voltage (V) | 3.3 |
| Cycle Life | 70% DOD (>7000) |
| Internal Resistance (mOhm) | <0.3 |
| Capacity (Ah) | 300 |
| Max discharge current (A) | 3000 |
| Optimal discharge current (A) | 150 |
| Max charging current (A) | 900 |
