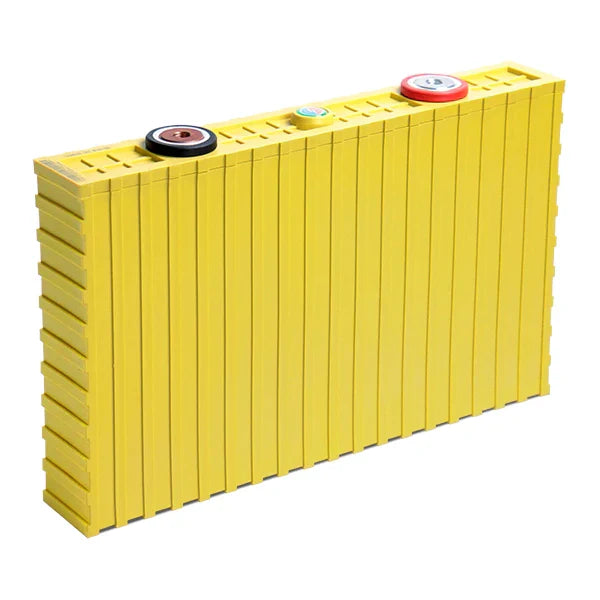

WINSTON TSWB-LYP500AHA 3.3V, 500Ah

ThunderSky Winston TSWB-LYP500AHA

Highly energy-efficient lithium cell, an original product from Winston Battery with LiFePO4 (LiFeYPO4) technology.

• Model: WB-LYP500AHA
• Capacity: 500 Ah
• Original ThunderSky Winston designations: WB-LYP500AHA, TSWB-LYP500AHA
• Recommended initial and subsequent charging: 3.65 V
• Minimum voltage: 2.8 V
• Maximum voltage: 3.8 V
• Maximum discharge current: 3C continuously
• Operating temperature: -45 to +65 °C (discharging)
• Energy density: 102 Wh/kg

These battery cells are suitable for all traction applications, including electric vehicles. They are also well-suited for stationary applications, such as energy storage.
There is no self-discharge.
They can be charged in any state of discharge - no memory effect.
LiFePO4 is a very safe technology, with no risk of self-ignition, and it does not react with moisture or oxygen.
All cells are supplied new directly from the manufacturer.
The original wooden crate contains 6 cells, with dimensions of 543 × 509 × 425 mm and a weight of 98 kg.

BASIC SPECIFICATIONS

Technology: Lithium (LiFeYPO4/LiFePO4)
Nominal voltage: 3.3 V
Operating voltage (under load): 3.0 V
Capacity: 500 Ah
Operating temperature range: -45 to +65 °C
Weight: 14.7 kg
Dimensions: 461 × 285 × 65 mm

Module size when using 400Ah cells

1 cell – Capacity 1.5 kWh / Depth 65 mm / Weight 14.7 kg
4 cells (12 V) – Total capacity 6.0 kWh / Depth 260 mm / Weight 59 kg
8 cells (24 V) – Total capacity 12.0 kWh / Depth 520 mm / Weight 118 kg
16 cells (48 V) – Total capacity 24.0 kWh / Depth 1040 mm / Weight 235 kg
